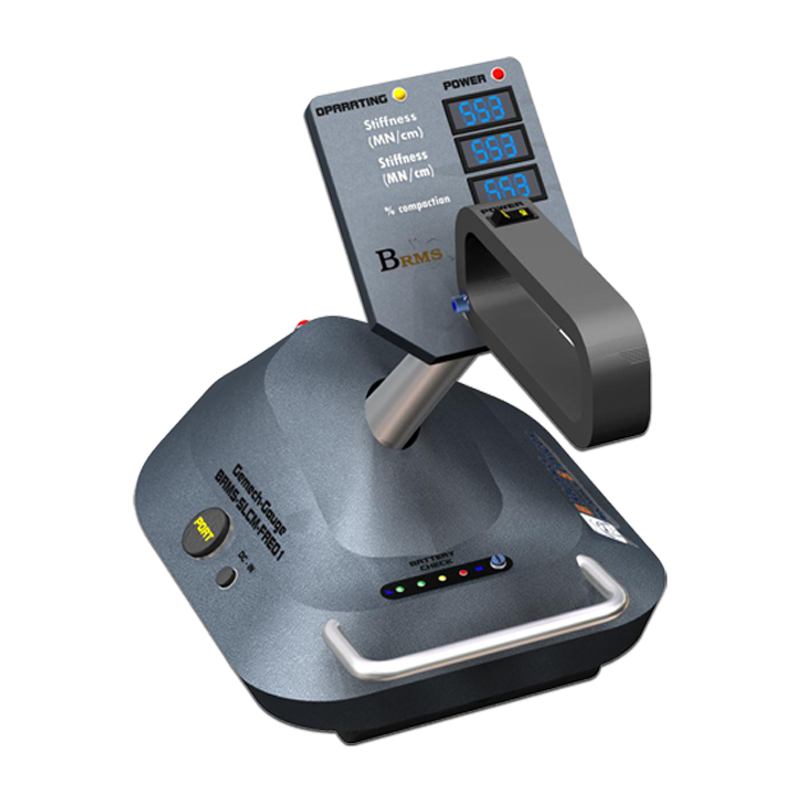

Non-Destructive Testing Instruments for Soil Compaction Measurement

The Non-Destructive Testing Instruments for Soil Compaction Measurement are designed for accurately assessing the compaction rate, modulus of deformation, and stiffness of compacted soil. These instruments offer quick and efficient measurement capabilities without the need for destructive sampling. Here are the typical specifications and main features of the system:

Applications:

Measurement of Soil Compaction Rate: Assessing the degree of compaction in soil.
Measurement of Modulus of Deformation: Evaluating the soil’s ability to deform under stress.
Measurement of Stiffness of Deformation: Determining the soil’s stiffness characteristics.

Typical Specifications:

Measuring Range for Stiffness: 2 – 80 MN/m (can be increased based on client requirements).
Measuring Range for Modulus of Deformation: 20 – 800 MPa (can be increased based on client requirements).
Accuracy of Measurement: Typically ±0.01% of the measuring range.
Measurement Depth: Typically 200-400 mm.
Measurement Time (Reaction Speed): Typically 30-50 seconds.
Display Screen: Customizable based on specifications.
Display Data: Provides information on stiffness, modulus of deformation, and compaction percentage.
Probe Size: Typically 280 × 200 × 150 mm.
Main Probe Weight: Typically 6-8 kilograms with AA batteries or 8-12 kilograms with rechargeable batteries.
Operating Temperature Range: -5 to +60 degrees Celsius.
Operating Humidity Range: Up to 90% humidity.
Standard: Conforms to ASTM D6758.

Main Distinguished Features:

Simple and Quick Operation: The instruments are user-friendly and offer fast measurement capabilities.
Customizable Design: The system can be designed and constructed according to client specifications.
Enhanced Work Efficiency: Improve the speed and quality of earth dam and soil foundation construction projects.
In-Situ Measurement: Obtain soil compaction data without the need for destructive sampling.
Stiffness and Modulus of Deformation Measurement: Assess the soil’s stiffness and deformation characteristics.
Rapid Detection: Quickly identify specified minimum and maximum permissible soil depths.
Adjustable Detection Depth: Customize the measurement depth based on project requirements.
Wave Length Adjustment: Ability to adjust the wave length for different application environments.

Main Distinguished Features:

Easy and Quick Convergence Measurements: Streamlined process for efficient and rapid convergence measurements.
Extended Measuring Range: Capable of measuring up to 50 meters, accommodating various project requirements.
High Accuracy: Offers exceptional accuracy of up to 0.001 mm, ensuring precise and reliable measurements.
Stability in Temperature Variations: Instrument materials designed to withstand rapid changes in environmental temperature, maintaining measurement accuracy.
Convenient Steel Tape Meter Replacement: Easy and swift replacement of the steel tape meter when necessary.

By utilizing the Non-Destructive Testing Instruments for Soil Compaction Measurement, you can accurately assess and monitor the compaction rate and deformation characteristics of compacted soil. These instruments provide valuable insights for construction projects, ensuring optimal soil compaction and structural integrity.

BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
