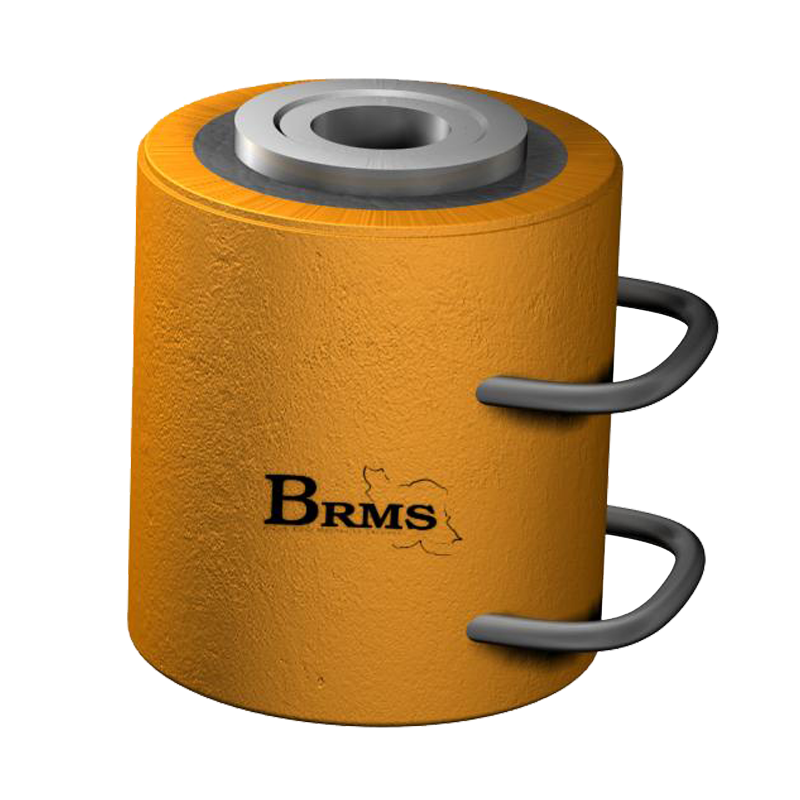

Anchor Pull Out Jack Assembly

Application:

The Anchor Pull Out Jack Assembly is a versatile tool used for monitoring, quality control, and testing of anchors and rock bolt installations. It offers the following capabilities:

Monitoring and ensuring the quality of anchor and rock bolt installations.
Measurement of the maximum tensile load capacity of anchors and rock bolts.
Conducting pullout tests and drawing force-displacement graphs to analyze anchor performance.

Varieties of BRMS Pullout Jack Assembly:

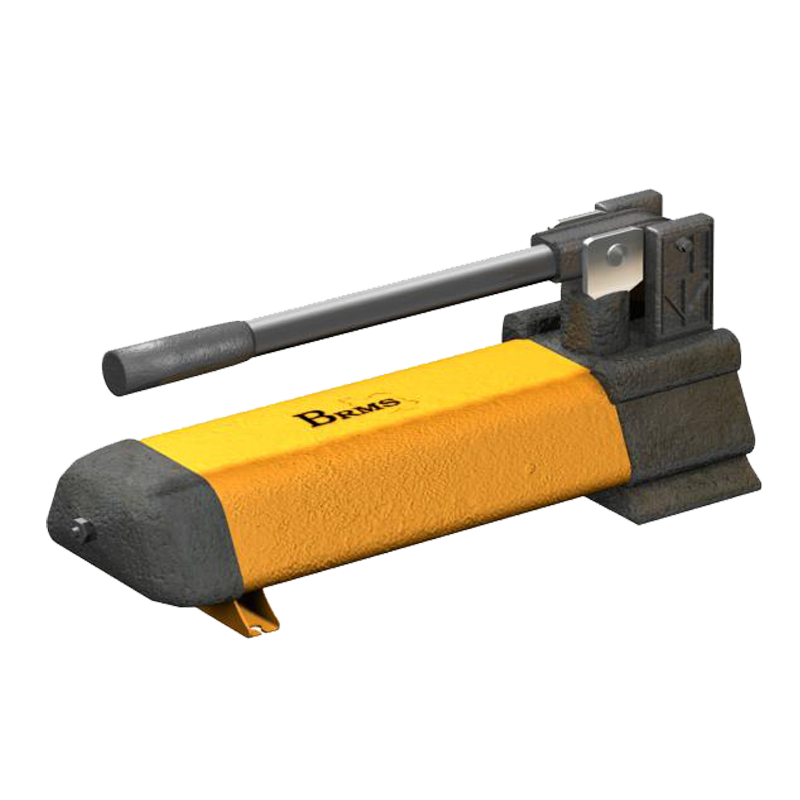

Pullout jack assembly with a hand-operated hydraulic pump.
Pullout jack assembly with an electric hydraulic pump.
Pullout jack assembly equipped with a displacement dial gauge and electric pressure transducers for measurement purposes.
Pullout jack assembly with an integrated system for electric measurement of displacement and pressure, enabling simultaneous drawing of force-displacement graphs during pullout tests.

Typical Specifications for BRMS Pullout Jack Assembly:

Capacity of force application up to 2000 kN with electrical readout system, ensuring accurate measurements with a measuring range up to 0.01%.
Capacity of force application up to 2000 kN with mechanical readout system, providing accuracy within a measuring range of 20 kN.
Capability to equip the system with automatic control and simultaneous online drawing of force-displacement diagrams for enhanced convenience and efficiency.

Minimum Information Required for Purchase Order Acceptance:

To ensure we provide you with the most suitable Anchor Pull Out Jack Assembly, please provide the following information with your purchase order:

Application requirements specifying the intended use of the assembly.
Type or system of displacement and pressure measurement desired.
Measuring range, accuracy, and resolution requirements.
System of force application (mechanical or electrical) preferred.
Environmental temperature and humidity variation range in the measurement environment.
Need for drawing force-displacement diagrams (simultaneous online or offline).
Need for automatic control and simultaneous online drawing of force-displacement diagrams.

The Anchor Pull Out Jack Assembly offers precise and reliable measurements, ensuring the quality and performance evaluation of anchor and rock bolt installations. With various assembly options and customizable specifications, you can select the ideal configuration to meet your specific monitoring and testing needs. Our pullout jack assemblies are designed for durability and ease of use, allowing efficient data collection and analysis.

Provide us with the necessary information, and we will deliver the Anchor Pull Out Jack Assembly that meets your requirements, enabling you to conduct accurate and comprehensive anchor testing and quality control in your projects.

BRMS instruments have 24 months guarantee and all after-sale services.

BRMS as designer and constructor of the instruments can accept feasible orders as specified by the clients.

Instruments specifications may be modified and updated, with new technology developments.
